Tin Shed Solar Module Mounting Structures
Multiple Mounting Solutions for Different Roof Slopes
Suncore offers specialized solar module mounting solutions for industrial tin sheds depending on the existing roof slope, module orientation and required solar tilt. From low-profile aluminium rails to adjustable flexible-angle structures, the mounting system can be selected according to actual site conditions.
4 Aluminium Rail Options
30 mm | 60 mm | 70 mm | 100 mm
5°–20° Adjustable Tilt
Flexible Angle Structure — site-adjustable tilt
Industrial Tin-Shed Solutions
Designed according to roof direction, profile and project layout.
Choose by Roof Slope Direction
| Roof Direction | Recommended System |
|---|---|
| South-facing slope | Aluminium Rail Structure |
| Low-profile South slope | 30 mm Micro Rail |
| South slope requiring additional rail height | 60 / 70 / 100 mm Aluminium Rail |
| East-West slope | Flexible Angle Structure |
| North-facing slope | Flexible Angle Structure |
| Adjustable module tilt required (5° to 20°) | Flexible Angle Structure |
Solution 1 — South-Slope: Aluminium Rail System
When the existing tin shed already has a suitable South-facing slope, an additional inclined structure is generally not required. Suncore provides aluminium mounting rails in different heights according to roof profile, module arrangement, ventilation clearance and project-specific mounting requirements.
- Lightweight aluminium construction
- Multiple height options for project-specific requirements
- Corrosion-resistant mounting solution
- Minimum additional mounting-structure roof load
- Quick handling and installation
- Compatible with AL6063 module clamps
- SS304 accessories as per approved configuration

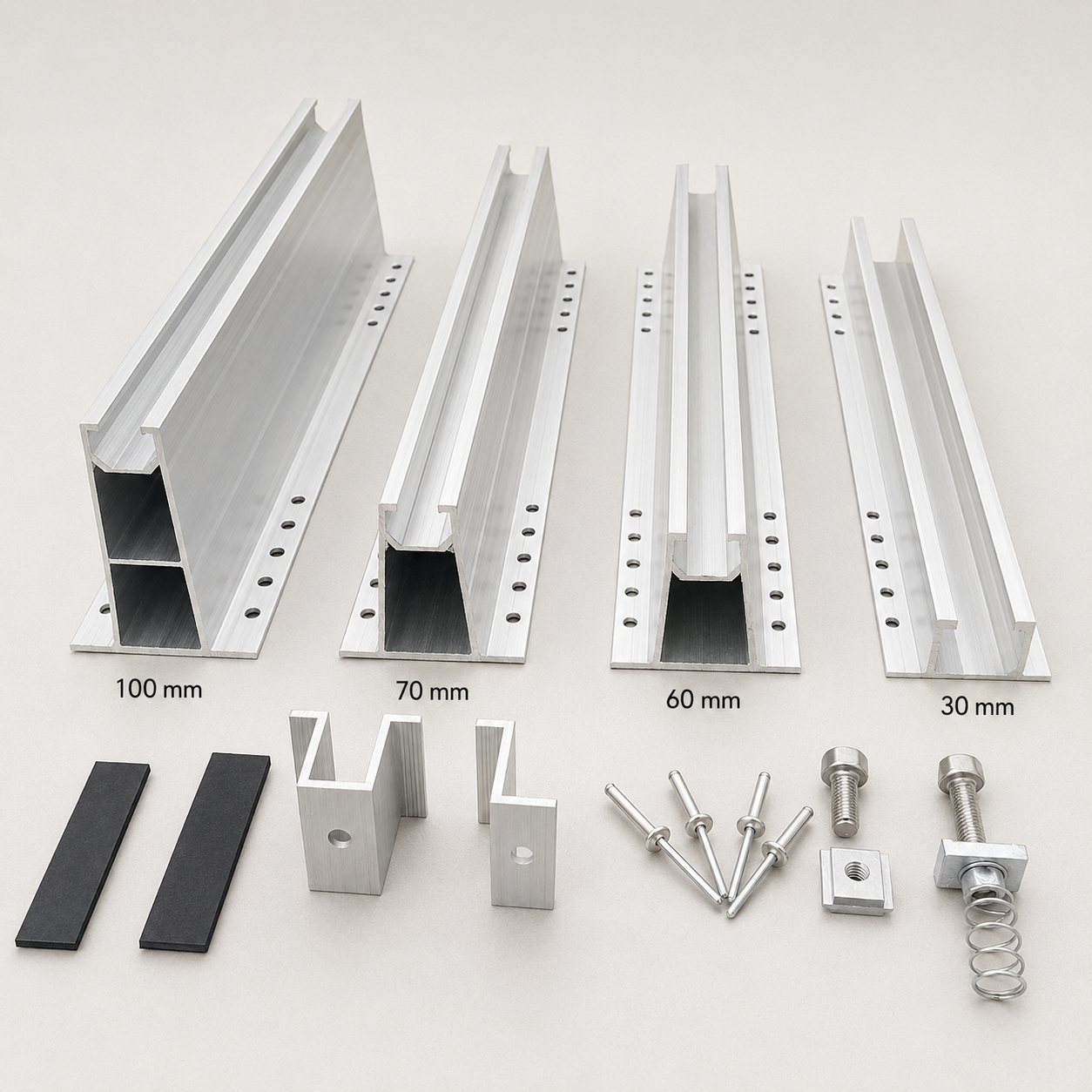

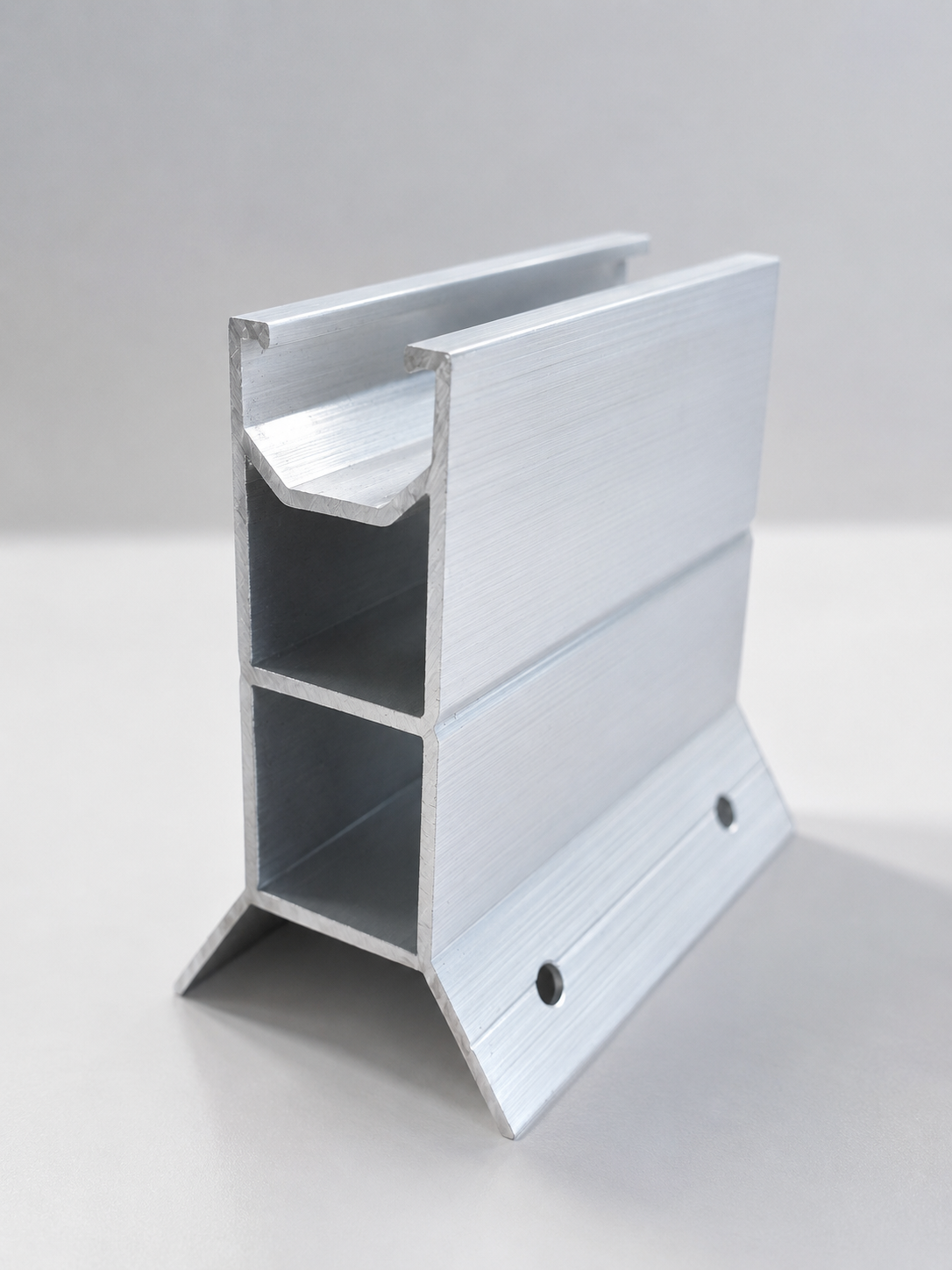

100 mm Heavy-Duty Aluminium Rail
The 100 mm aluminium rail is a higher-profile rail option for applications requiring increased rail height while retaining the benefits of lightweight aluminium construction — suitable where greater ventilation clearance, roof profile clearance or module height is required.
Solution 2 — East-West / North-Slope: Flexible Angle Structure

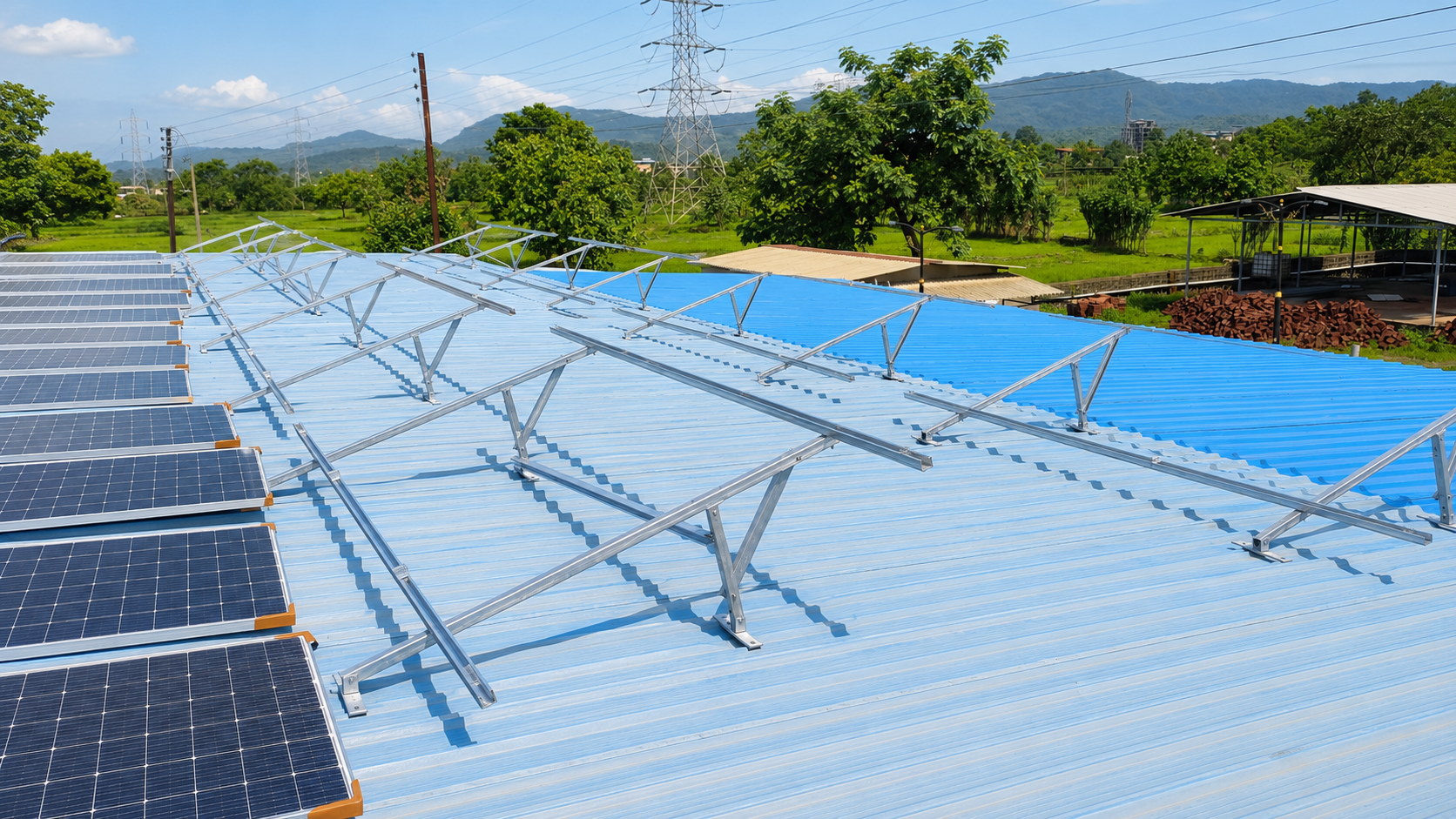

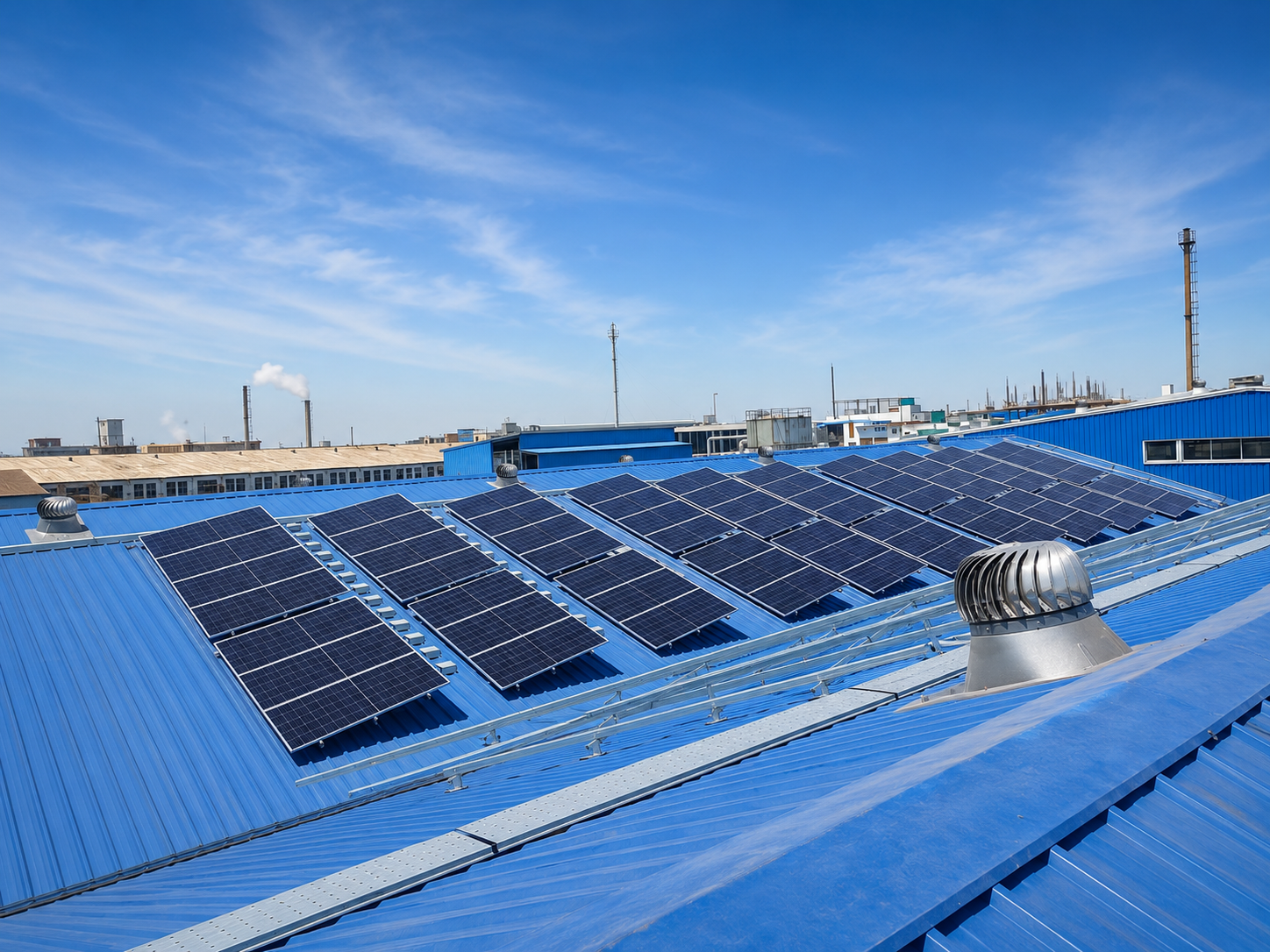

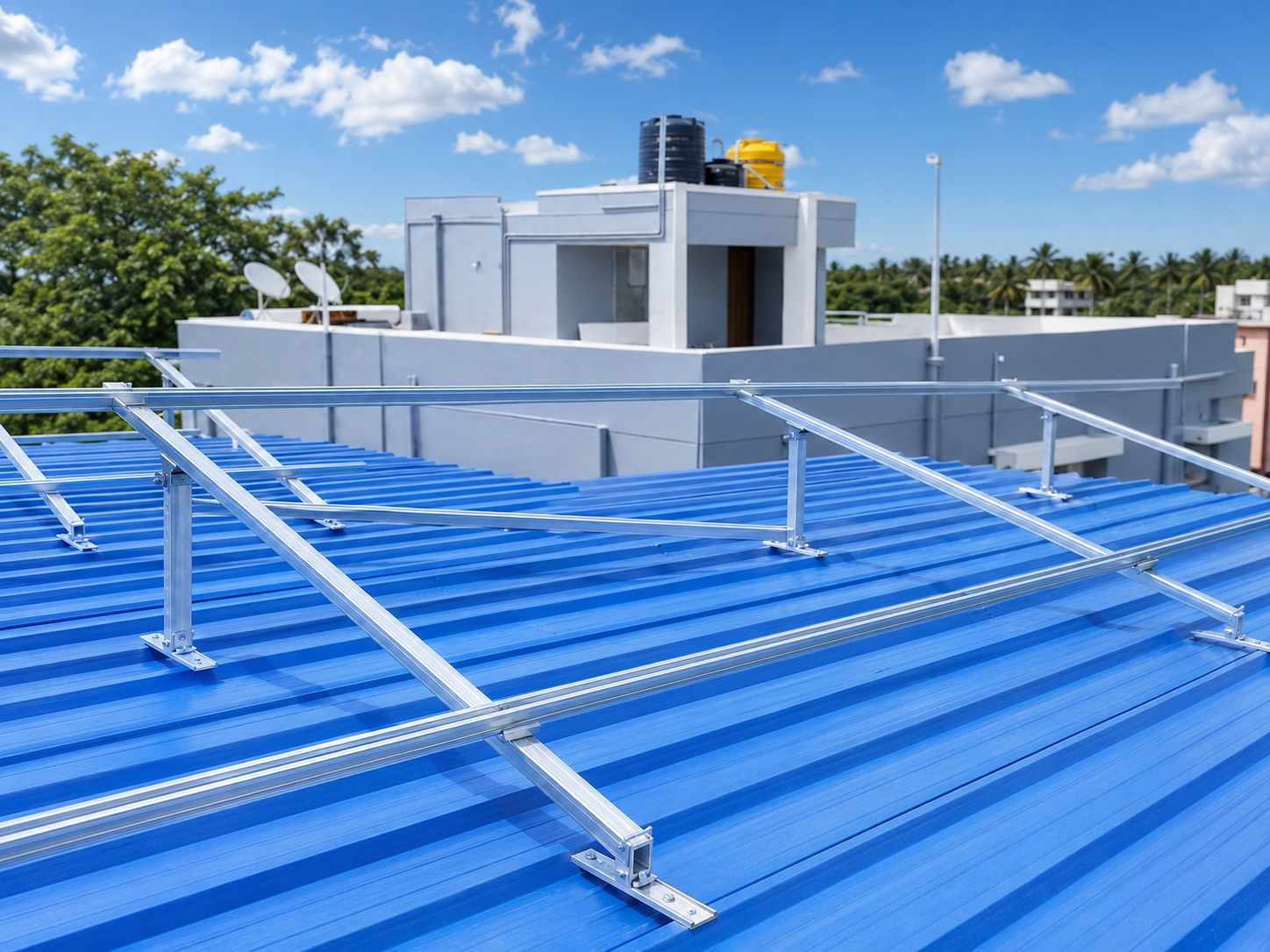

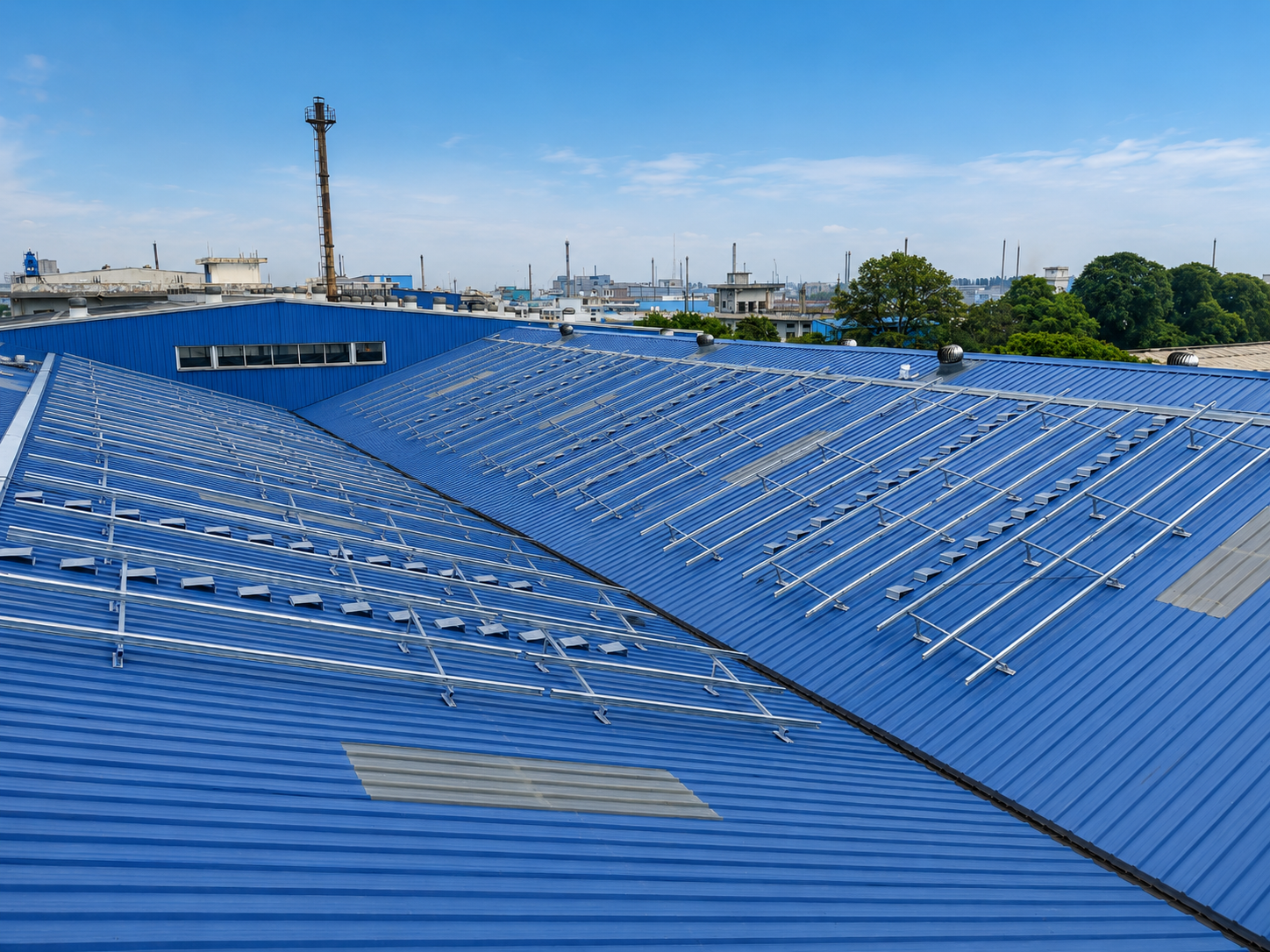

For East-West or North-facing tin-shed roofs, Suncore offers a Flexible Angle Solar Structure that allows the solar module tilt to be adjusted directly at site within the approved adjustment range. This improves adaptability across different roof slopes and site configurations.
Unlike a fixed-angle mounting system, the Suncore Flexible Angle Structure allows the installer to modify the tilt during installation within the approved range, enabling the correct inclination to be selected according to the project layout and site conditions.
- Adjustable on site — 5° to 20° tilt range
- Suitable for East-West and North-slope tin sheds
- Mechanical / nut-bolt assembly
- Useful where additional module inclination is required
Aluminium Rail vs Flexible Angle Structure
| Criteria | Aluminium Rail System | Flexible Angle Structure |
|---|---|---|
| Typical Roof | South Slope | East-West / North Slope |
| Tilt | Follows approved roof/system configuration | Adjustable on site |
| Tilt Range | Project dependent | 5° to 20° |
| Rail Height Options | 30 / 60 / 70 / 100 mm | Not applicable |
| Main Benefit | Lightweight & quick installation | Flexible tilt correction |
| Best For | Compatible sloping tin roofs | Roofs requiring additional/adjustable tilt |
Product Specification
| Product | Tin Shed Solar Module Mounting Structure |
| Application | Industrial Tin / Metal Roof |
| Solution Type 1 | Aluminium Rail Structure |
| Aluminium Rail Heights | 30 / 60 / 70 / 100 mm |
| Solution Type 2 | Flexible Angle Structure |
| Flexible Tilt Range | 5° to 20° |
| Module Clamps | Aluminium AL6063 |
| Accessories | SS304 / Project Specific |
| Installation | Mechanical / Nut-Bolt Assembly |
| On-Site Welding | Minimized / Not required for approved configuration |
| Customization | Available |
- ✓ Lightweight aluminium construction
- ✓ 4 rail height options: 30 / 60 / 70 / 100 mm
- ✓ Corrosion-resistant aluminium rails
- ✓ Minimum additional roof load
- ✓ Quick handling and installation
- ✓ AL6063 module clamps
- ✓ SS304 accessories where specified
- ✓ Adjustable tilt: 5° to 20° (Flexible Angle)
- ✓ Suitable for East-West and North-slope roofs
- ✓ Mechanical / nut-bolt assembly
- ✓ Minimal on-site fabrication
- ✓ Customizable to roof profile and layout
- ✓ PAN-India supply capability
