Solar Structure Accessories & Mounting Components
Solar Structure Accessories & Mounting Components
Complete Range. Reliable Materials. Installation Ready.
Suncore supplies precision-engineered solar mounting accessories — clamps, fasteners, connectors, sealing components and specialized adhesives — for rooftop, tin-shed, elevated and customized solar structure applications.
Complete Range
All accessories from one source
Installation Ready
Quick site assembly
Reliable Materials
AL6063, SS304 & project-specific
Solar Module Mounting Accessories
Aluminium clamps engineered to securely hold solar module frames to mounting rails across all structure types.

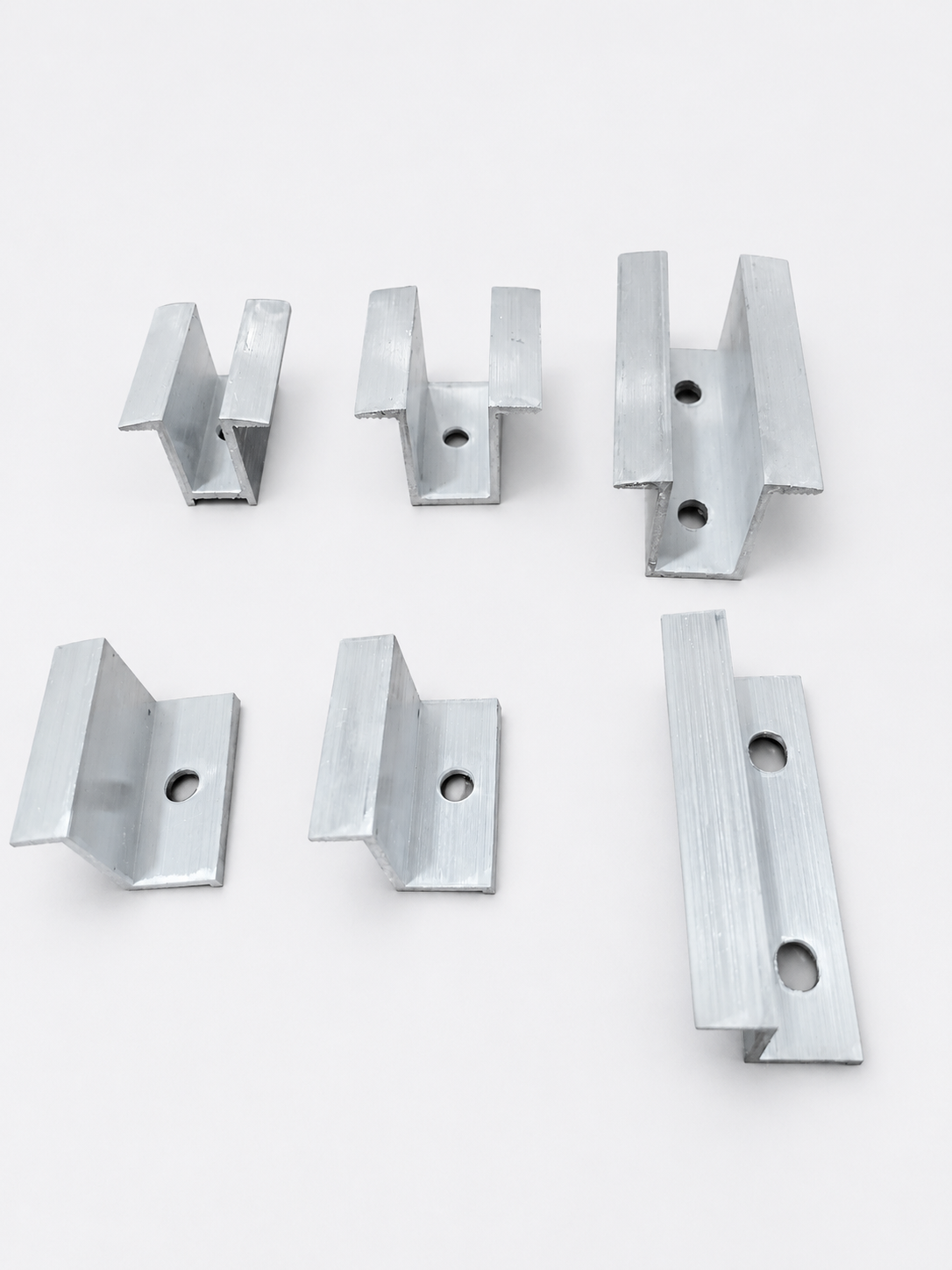

Aluminium Mid Clamp
Used between two adjacent solar modules to securely hold both module frames onto the mounting rail or purlin.
Suncore Mid Clamps are designed to securely fasten adjacent solar modules while maintaining consistent spacing and alignment across the module array.
- Aluminium AL6063 construction
- Lightweight and corrosion resistant
- Secure module fixing
- Consistent inter-module spacing
- Suitable for standard solar-module frames
- Compatible with approved Suncore mounting systems

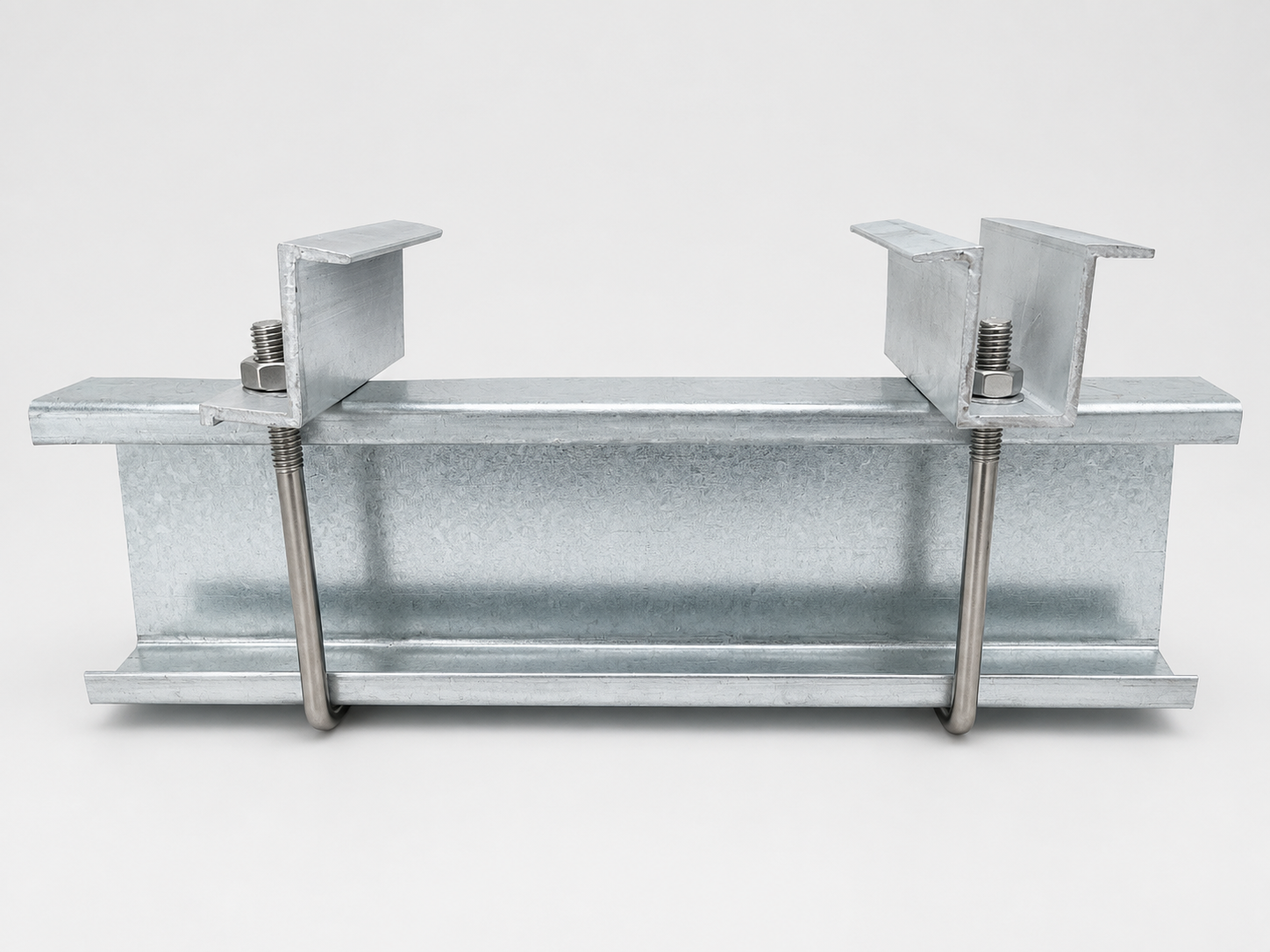

Aluminium End Clamp
Used at the outer ends of the solar-module array to lock the first and last modules.
Suncore End Clamps securely lock the first and last modules of the solar array to the mounting structure, providing strong edge support and a clean installation finish.
- Aluminium AL6063
- Corrosion resistant
- Compact design
- Quick installation
- Available according to module-frame height
- Suitable for rooftop and tin-shed mounting systems
Available in different sizes according to solar-module frame thickness.
Fasteners & Connection Components
Precision fasteners, connectors and structural components for secure assembly across Suncore mounting systems.

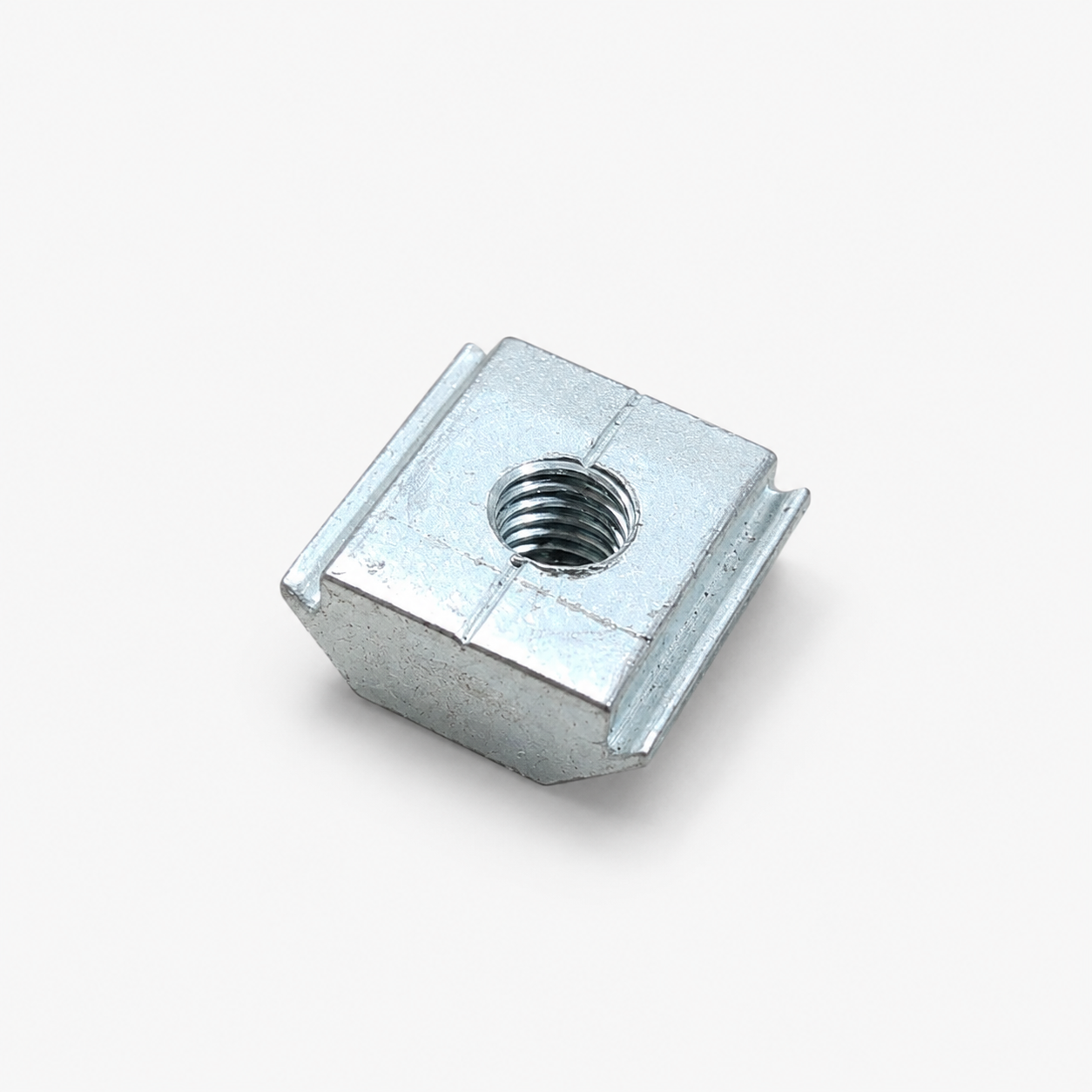

Spring Nut
Used inside strut channels or compatible rail systems for fastening structural and accessory components.
Spring Nuts provide an efficient fastening solution for slotted channels, allowing components to be positioned and secured quickly during installation.
- Easy positioning
- Secure channel connection
- Faster assembly
- Repositionable before final tightening
- Suitable for modular solar structures
Material and finish as per approved system specification.
Allen Bolt with Washer
Used for fastening clamps, connectors and structural accessories.
Precision fasteners used for secure and neat mechanical connections across solar mounting assemblies.
- Easy tightening
- Compact head design
- Suitable for module-clamp assemblies
- Washer improves load distribution
- Available in project-specific sizes
- SS304 options available where applicable
Adjustable Degree Connectors
Used where structural members need to be joined at a specific angle.
Degree Connectors are used for creating controlled angular connections between solar mounting members, helping achieve the required structure geometry and module tilt.
- Accurate angular connection
- Easy nut-and-bolt assembly
- Suitable for customized structures
- Helps reduce site fabrication
- Available in project-specific configurations
Cross-application: used in Flexible Angle Tin Shed Structures.

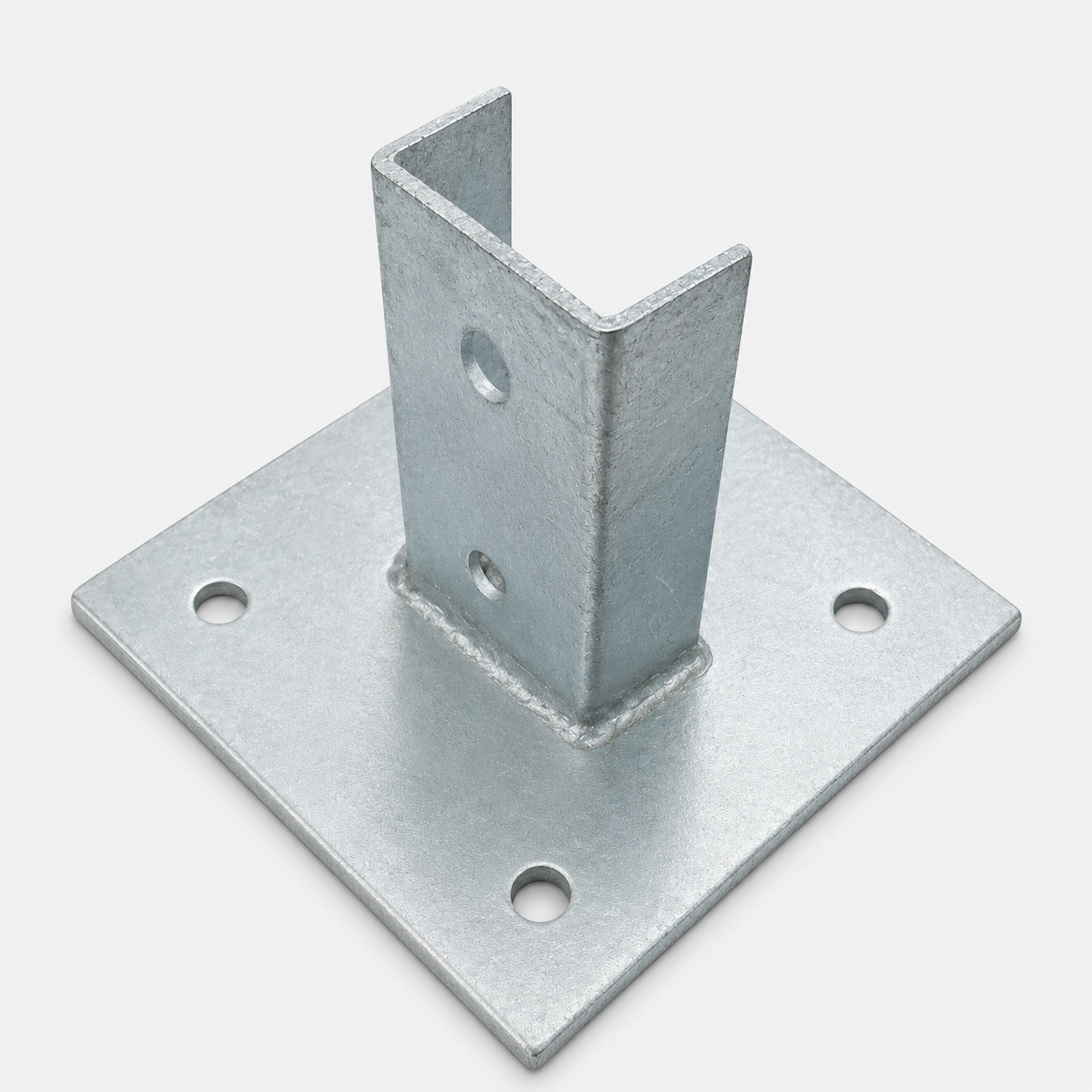

Baseplate with Welded C-Channel
Used as a structural base connection for columns, legs or supports.
Pre-fabricated baseplate assemblies with welded C-channel provide a ready-to-install structural connection between the mounting frame and approved foundation or roof interface.
- Factory-fabricated assembly
- Controlled welding
- Reduces on-site fabrication
- Consistent alignment
- HDG / Pre-GI / project-specific finish

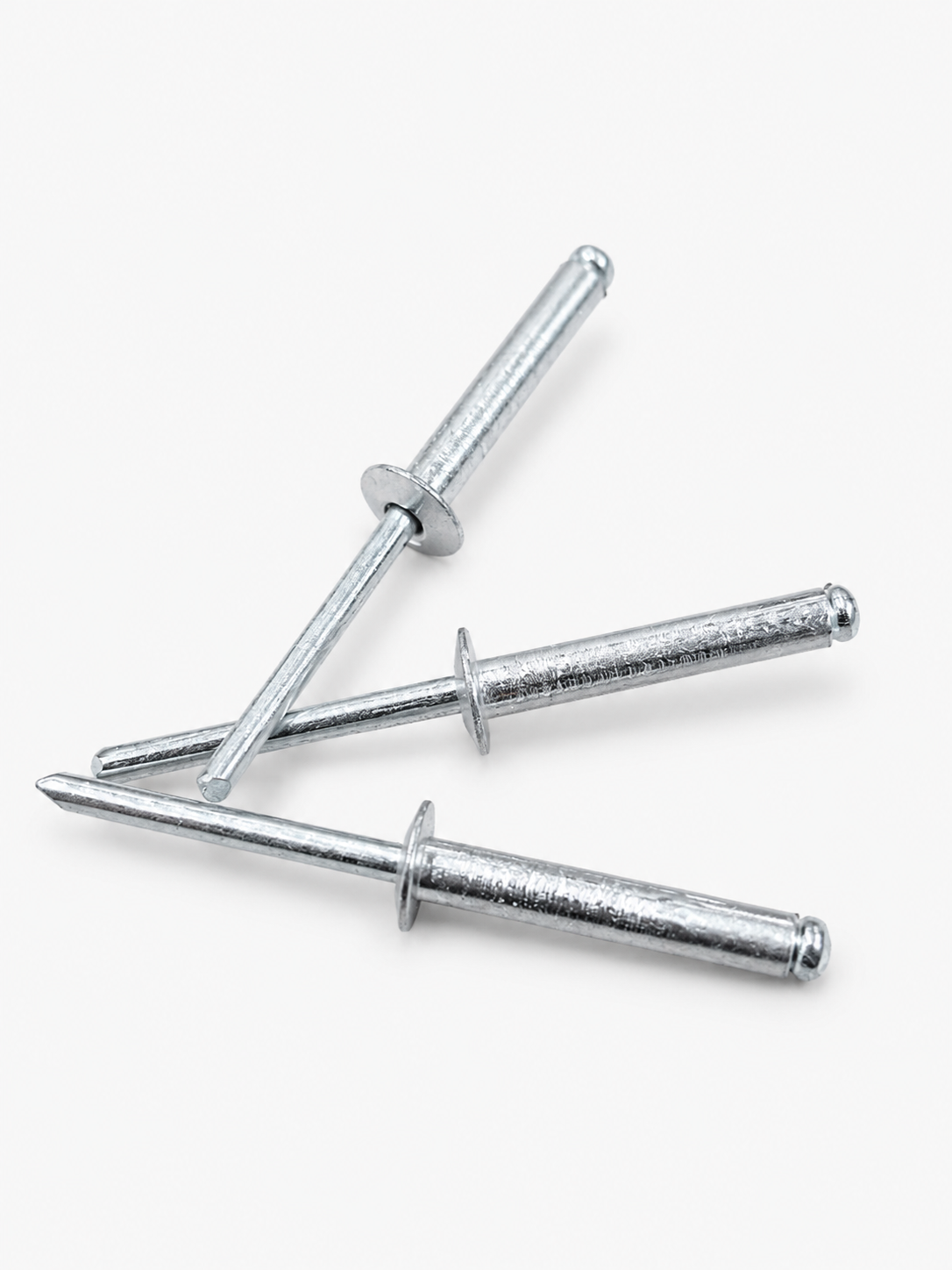

Rivet
Used for compatible sheet-metal and accessory connections.
Rivets provide a quick mechanical fastening solution for approved thin-sheet and accessory connections in solar mounting applications.
- Quick installation
- Compact fastening
- Suitable for compatible sheet applications
- Different sizes available
Solar Mounting Screw
Used for approved roof, rail or component fastening depending on system design.
Project-specific screws are available for fastening solar mounting components to compatible structural or roofing interfaces.
- Different lengths and diameters
- Project-specific selection
- Fast installation
- Compatible sealing washers available where required
Final screw selection based on roof type, substrate, design load and approved mounting configuration.
Roof & Sealing Accessories
Sealing and cushioning components for compatible roofing and fastening applications.

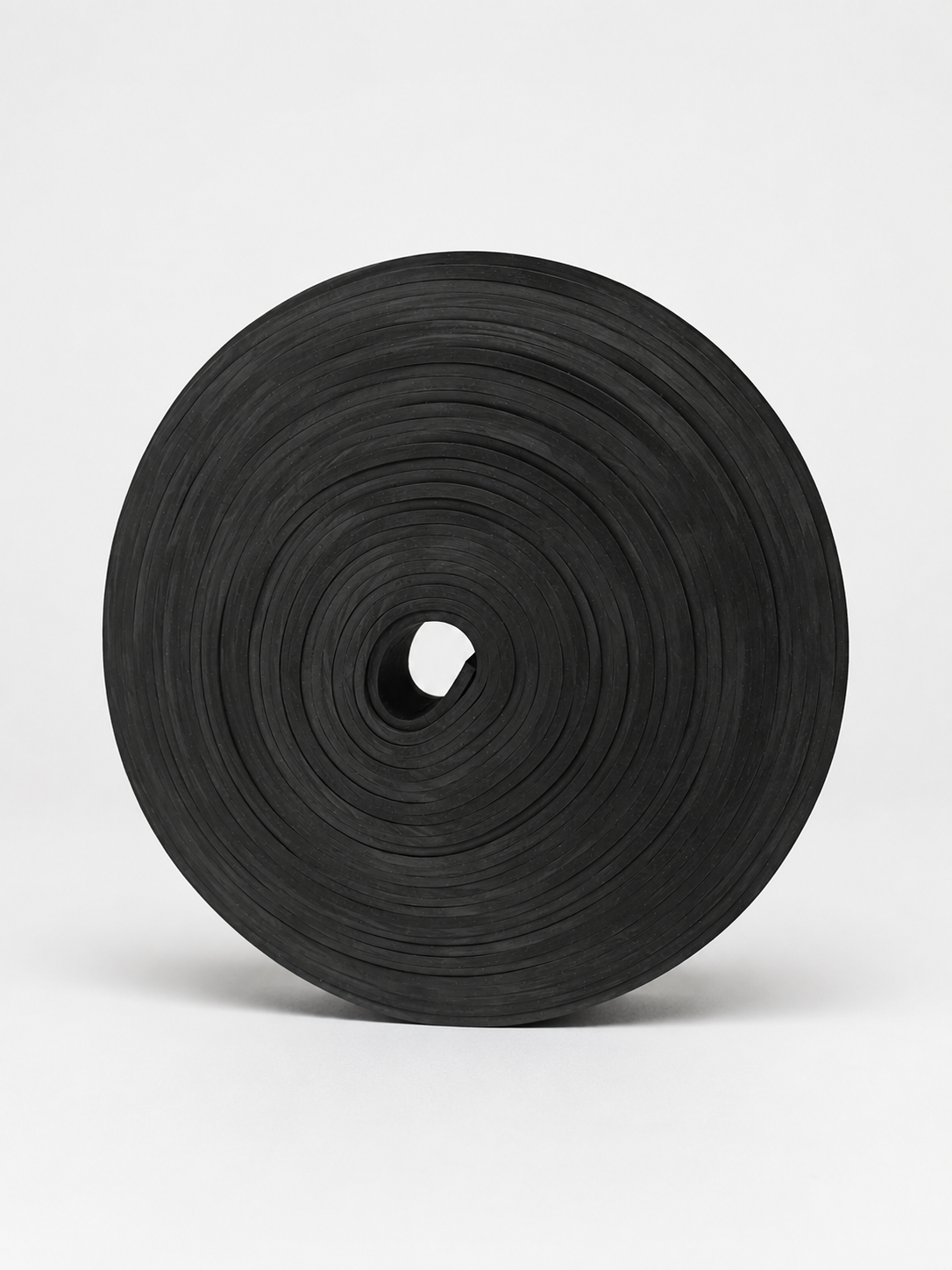

EPDM Rubber Pad / Strip
Used between mounting components and roof surfaces where required.
EPDM rubber components provide cushioning, surface separation and sealing assistance between mounting hardware and compatible roofing surfaces.
- Weather resistant
- Flexible
- Helps protect roof contact surfaces
- Helps reduce direct metal-to-roof contact
- Useful in compatible tin-shed mounting applications
Helps support sealing and water-ingress protection when used as part of an approved installation system.

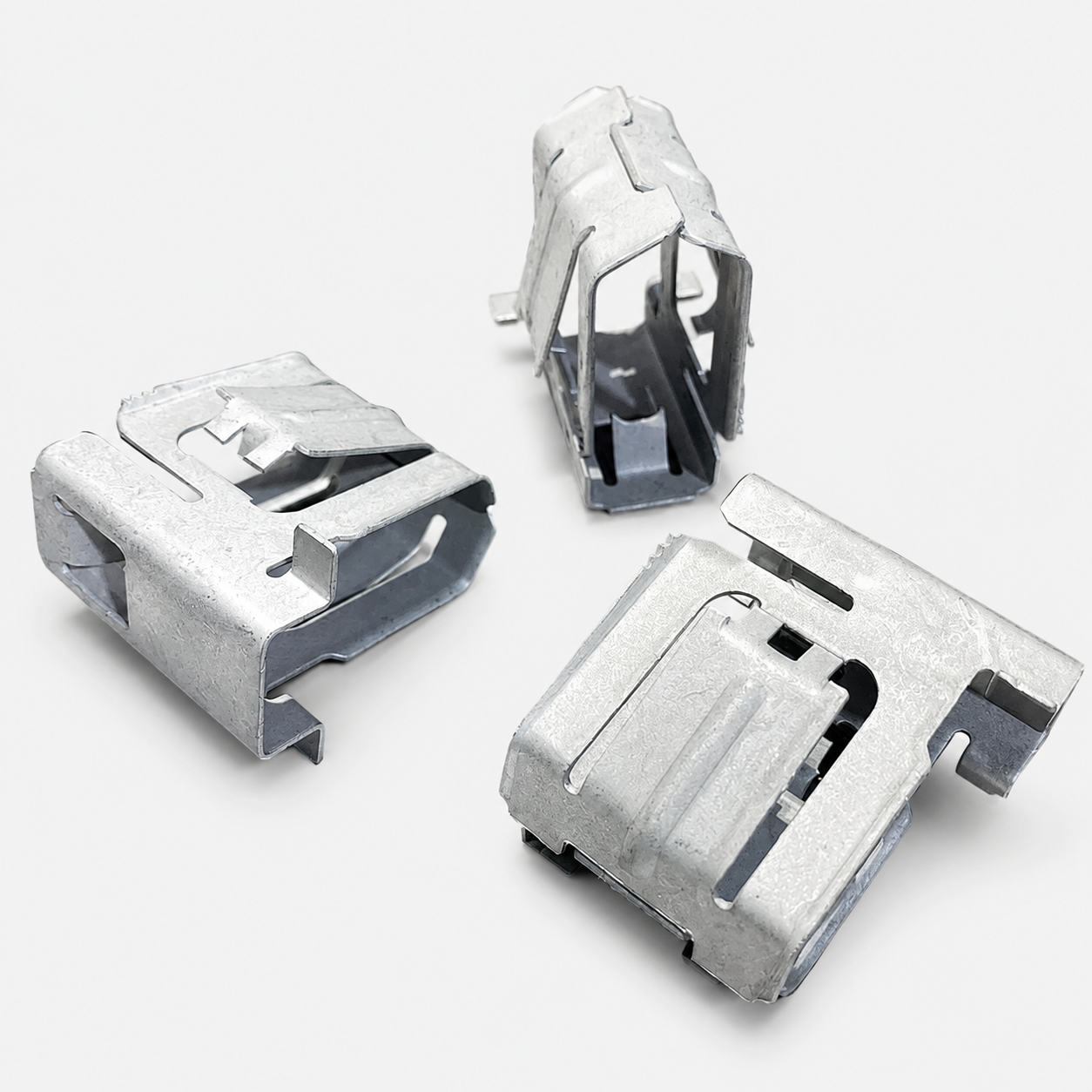

ARaymond Clamps
Specialized fastening clamps for compatible roofing and mounting applications.
ARaymond fastening solutions can be offered for selected solar mounting applications based on roof profile and approved system requirements.
- Fast mechanical attachment
- Application-specific model selection
- Suitable for selected roofing profiles
- Available through Suncore for suitable projects
ARaymond is a third-party brand. Model selection depends on roof profile, sheet configuration and project requirements.
Specialized Solar Mounting Adhesives
Bonding Solutions for Different Surface Interfaces. Adhesive selection depends on substrate condition, surface preparation, structural requirement and approved installation methodology.

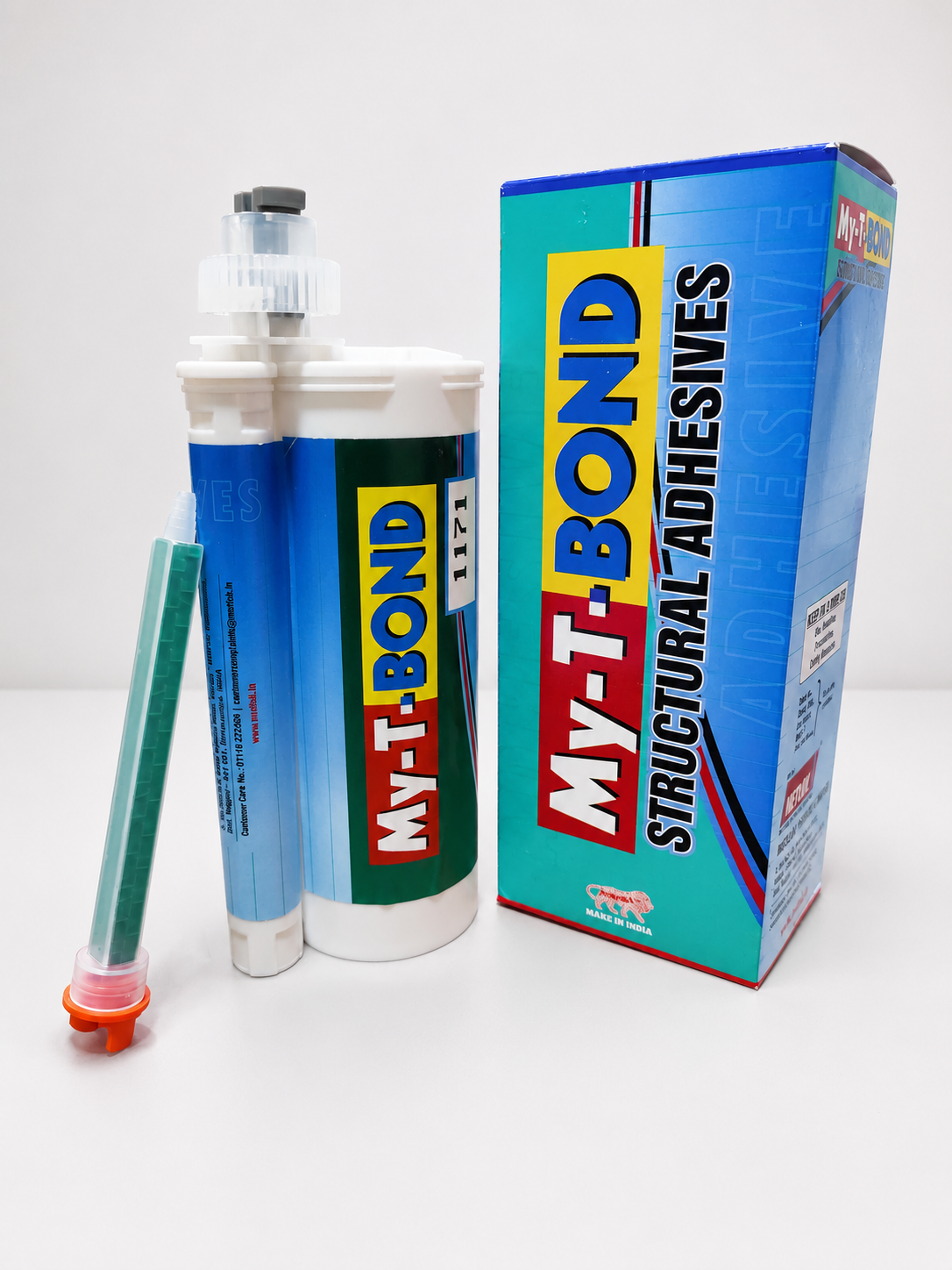

Metal-to-Metal Structural Adhesive
Bonding compatible metal mounting components to metal surfaces in approved applications.
High-performance bonding solution for selected metal-to-metal solar mounting applications where mechanical or hybrid fixing systems require additional bonding support.
- Strong bonding on compatible metal surfaces
- Suitable for outdoor applications where approved
- Can support selected secondary fastening needs
- Clean installation
Metal-to-RCC Concrete Adhesive
Bonding compatible metal components to RCC / concrete surfaces.
Specialized adhesive system for selected metal-to-concrete interfaces in rooftop solar mounting applications.
- Designed for compatible concrete surfaces
- Useful for selected non-conventional mounting requirements
- Clean application
- Project-specific bonding solution
Metal-to-Asbestos-Cement Sheet Adhesive
Bonding selected metal components to compatible asbestos-cement roofing under an approved project methodology.
Specialized bonding solution for selected solar mounting interfaces involving compatible asbestos-cement roofing, where the approved project methodology seeks to minimize disturbance to the existing sheet.
- Application-specific adhesive selection
- Can help reduce unnecessary mechanical disturbance where approved
- Project-specific bonding solution
- Requires careful substrate assessment
Adhesives should be selected according to substrate compatibility, environmental exposure, design load and manufacturer technical data. Where the mounting connection is structural or safety-critical, the approved engineering design should determine whether mechanical fixing, adhesive bonding or a hybrid system is required.
Technical Specification Overview
| Product | Typical Material / Type | Main Application |
| Mid Clamp | Aluminium AL6063 | Between adjacent PV modules |
| End Clamp | Aluminium AL6063 | Outer edge of module array |
| Spring Nut | Project Specific | Strut / channel fastening |
| Allen Bolt + Washer | SS304 / Project Specific | Clamp & component fixing |
| EPDM Rubber | EPDM | Cushioning / sealing support |
| Degree Connector | Metal / Project Specific | Angular member connection |
| Baseplate + C-Channel | Steel | Structural base connection |
| Rivet | Project Specific | Sheet / accessory fastening |
| Screw | Project Specific | Roof / rail / component fixing |
| ARaymond Clamp | Selected Model | Specialized roof fixing |
| Metal-to-Metal Adhesive | Structural Adhesive | Metal bonding |
| Metal-to-RCC Adhesive | Structural Adhesive | Metal-to-concrete bonding |
| Metal-to-Asbestos Adhesive | Compatible Adhesive | Selected roof bonding |
Everything Required for Structure Installation
Suncore can supply mounting structures along with the required clamps, fasteners, connectors, sealing components and accessories — helping EPC teams reduce procurement complexity and coordinate material from a single source.
Accessories by Application
| Application | Common Accessories |
| RCC Rooftop | Mid Clamp, End Clamp, Spring Nut, Allen Bolt, Baseplate Assembly |
| Tin Shed | Mid Clamp, End Clamp, EPDM, Screw, Rivet, ARaymond Clamp |
| Flexible Angle Structure | Degree Connector, Fasteners, Clamps |
| Elevated Structure | Clamps, Spring Nuts, Bolts, Connectors |
| Ground Mounted | Module Clamps, Fasteners, Connectors |
| Solar Carport | Module Clamps, Fasteners, Structural Accessories |
Key Features
Complete Accessory Range
Multiple Solar Structure Types
Aluminium AL6063 Clamps
SS304 Accessory Options
Project-Specific Sizes
Bulk-Order Capability
Installation-Friendly Components
PAN-India Supply Capability
Compatible with Suncore Systems
Project-Wise Packing
Corrosion-Resistant Options
Separate Accessory Supply Available
